Instrumentation Tube Fittings RFQ Checklist

A tube fitting should be sourced against the instrument service it supports, not only against a short catalog-style description. Include whether the item is used on an analyzer panel, pressure transmitter, sampling system, test stand, hydraulic control panel, nitrogen purge, air line, steam trace, utility line, or general maintenance repair.

That context helps separate ordinary small fittings from pressure-sensitive, corrosion-sensitive, or documentation-heavy items. It also helps Westgate flag adjacent lines such as stainless tubing, needle valves, check valves, gauges, tube clamps, mounting hardware, thread sealant, labels, tools, and PVF items that may belong on the same RFQ.

For compression-style fittings, the tube outside diameter is the controlled field. State the tube OD, wall thickness when known, tubing material, fitting body material, straight or angled body style, and whether the request is for a union, elbow, tee, reducer, bulkhead, male connector, female connector, cap, plug, nut, ferrule set, or replacement component.

Do not treat tube size and pipe size as interchangeable. A 1/4 inch tube connection, 1/4 inch NPT thread, and 1/4 inch pipe component can point to different parts. When the connection is uncertain, include photos with a ruler, caliper reading, thread gauge result, and the mating component.

The non-tube end should be described with the same care as the compression end. Call out NPT, NPTF, BSPP, BSPT, SAE straight thread O-ring boss, metric thread, flare, face seal, pipe weld, socket weld, flange adapter, or other connection style when known. Include male or female orientation and whether the part must swivel, pass through a panel, reduce size, or connect to a valve or instrument port.

If the plant standard allows alternates, define the boundary up front. For example, Westgate can quote same thread only, stainless only, domestic preferred, no mixed brands, no imported substitution, or stocked and documented options as separate lines for buyer approval.

Instrumentation fittings often live in tight spaces where pressure, vibration, corrosion, temperature, and leakage expectations matter. Include operating pressure, temperature range, media, cleaning exposure, outdoor or washdown exposure, vibration, and whether the line handles air, water, oil, gas, chemical sample, steam, hydraulic fluid, or inert purge service.

Material requirements should be explicit. Stainless steel may be required for corrosion, plant standardization, clean service, or customer acceptance. Brass, carbon steel, alloy, or plastic options may be practical in some utility services, but those substitutions should be visible on the quote before purchasing awards the order.

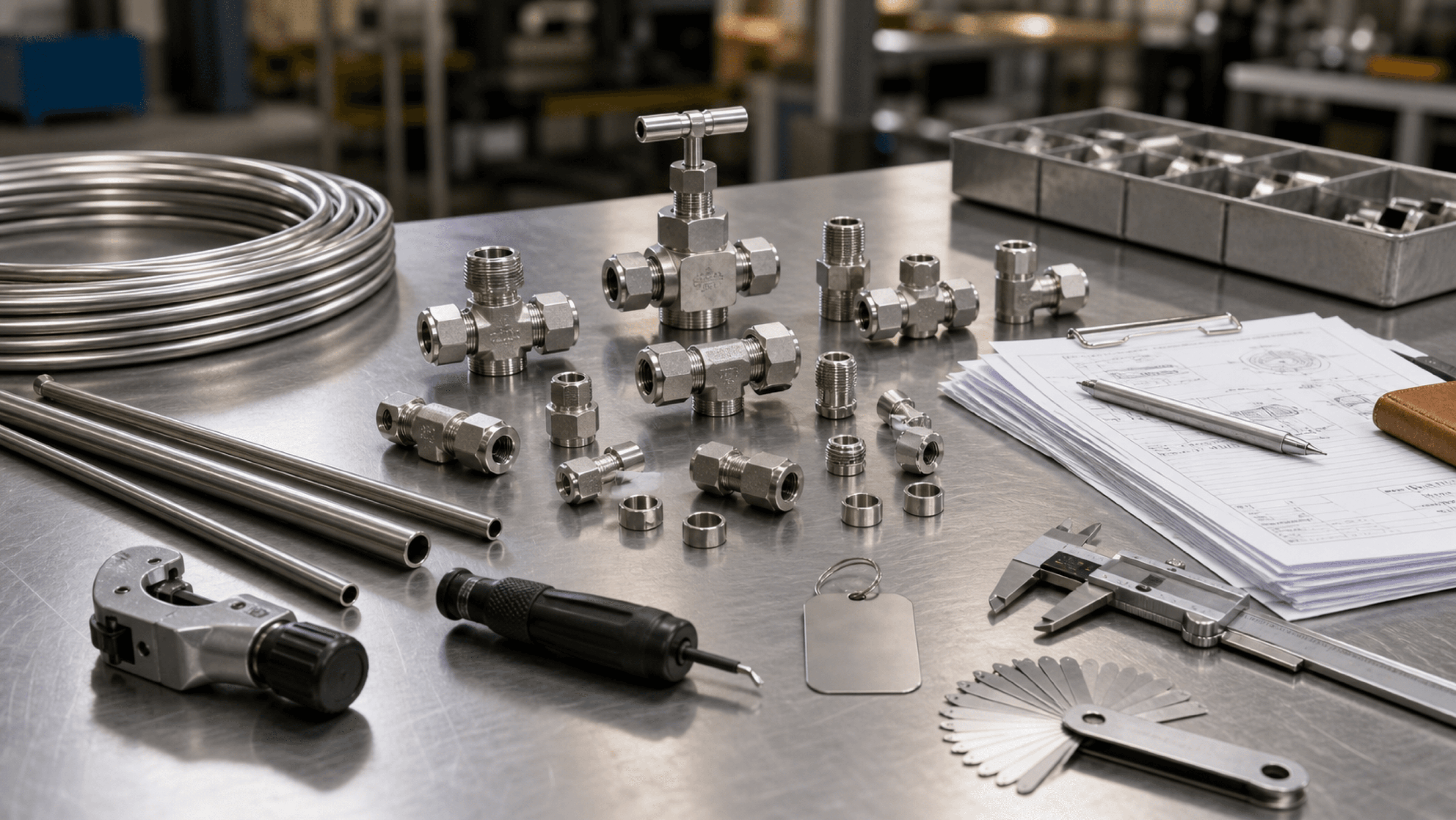

Instrumentation work usually needs more than loose fittings. Stainless tubing, tube inserts, nuts, front and back ferrules, bulkhead hardware, needle valves, ball valves, check valves, manifolds, gauges, pressure snubbers, clamps, channel, fasteners, tube cutters, deburring tools, bending tools, and thread sealant may all belong on the same repair or panel-build RFQ.

For tubing, state OD, wall thickness, material, temper, coil or straight length, cleaned requirement, cap or plug requirement, and whether heat or lot traceability is needed. For valves, include connection sizes on both ends, pressure class or rating, body and trim material, handle style, flow direction, and documentation needs.

Some instrumentation buys are ordinary maintenance replenishment, while others support customer skids, regulated equipment, quality files, or receiving controls. Name required paperwork in the first RFQ: COC, MTR, country of origin, lot traceability, pressure rating data, cleaning statement, manufacturer data sheet, or customer-specific certificate.

A practical quote should separate stocked commercial options, domestic options, documented options, and substitutions that require review. That visibility lets purchasing choose speed, compliance, or a staged shipment without discovering after award that the fitting is available but the required tubing, valve, or paperwork is not.
